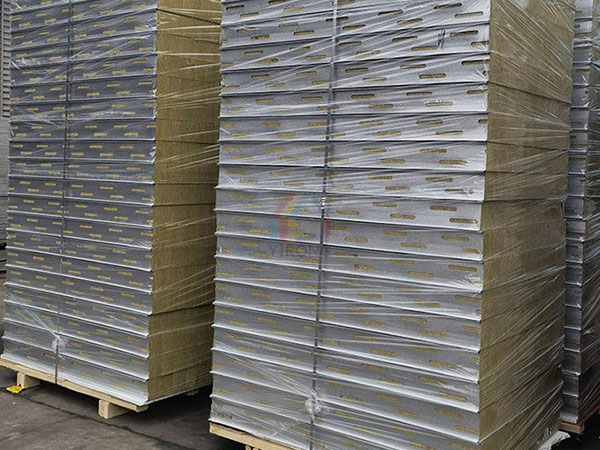

Oven Rockwool Sandwich Panel

Oven rockwool sandwich panel are mainly used in high temperature environments such as spray/baking rooms, curing ovens, and grinding rooms. The rock wool drying board has the effect of fire prevention and heat insulation. According to different project requirements, use temperature, and customize rock wool baking board of corresponding specifications.

What is a drying tunnel? What is the use of the oven board? As far as I can see, the color steel sandwich panels used in high-temperature environments such as spray (baking) paint rooms, drying rooms, curing ovens, ovens, and painting are called drying tunnel boards, and some people also call them. stove board. Although the drying tunnel board belongs to a product of the color steel sandwich panel. However, it is still different from color steel sandwich panels for exterior walls. Judging from the years of experience of Yirong sandwich panel manufacturers, there are three obvious differences between drying tunnel panels and ordinary rock wool sandwich panels:

The rock wool oven board also has the characteristics of the color steel pressure surface sandwich panel products:

1. The surface is smooth and the appearance quality is superior.

2. Easy installation, high efficiency, and low cost compared to manual production.

3. The thickened rock wool core material is basalt melted into filaments at high temperature, and then solidified and formed. It has good sound absorption, sound insulation performance and good fire resistance. Tests have shown that it has a fire resistance of 600 ° C, and its fire resistance reaches Class A.

4. The interface is tight and the heat is not easily conducted; when the temperature in the furnace is 180 °C, the temperature of the outer plate is lower than the normal temperature +5 °C.

5. The thermal insulation effect range of oveb rockwool sandwich panel with color steel galvanizing is below 280 degrees. Normally, the furnace body temperature is about 200 degrees, and a drying tunnel board with a thickness of more than 100mm should be used. The temperature of the furnace body is about 250 degrees, and the thickness of 150mm or more should be used.

Functional application

As a supporting product for coating equipment, oven rock wool sandwich panel is widely used in drying tunnels, ovens, ovens, paint booths, tunnel furnaces, etc.
