The difference between horizontal and vertical installation of polyurethane insulation panel

Polyurethane insulation panel is widely used in the construction industry due to its excellent insulation performance and light weight, especially in the insulation projects of walls, roofs and floors. In the actual construction process, there are two main ways to install polyurethane insulation board: horizontal installation and vertical installation. These two installation methods have their own characteristics and applicable scenarios. This article will explore their differences and their respective advantages and disadvantages.

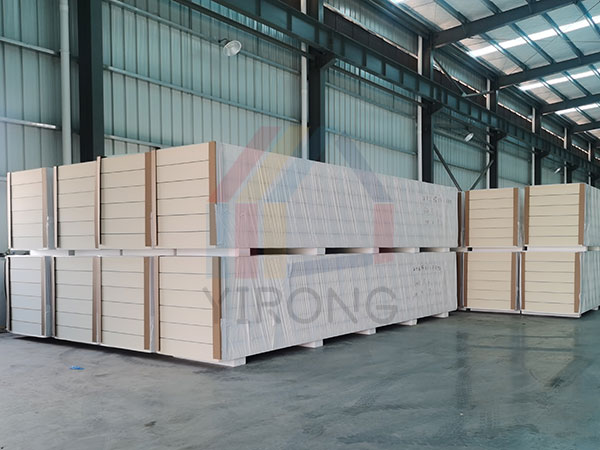

polyurethane insulation panel

Basic definition

Horizontal installation

Horizontal installation refers to placing the long side of the polyurethane insulation panel horizontally, usually on horizontal surfaces such as walls and roofs. This method is common in occasions where large areas need to be covered, such as exterior wall insulation, roof insulation, etc.

Vertical installation

Vertical installation is to place the long side of the polyurethane insulation panel vertically, usually for facades or vertical surfaces, such as exterior walls, partitions, etc. This method is suitable for occasions where vertical laying is required, especially in the facade design of buildings.

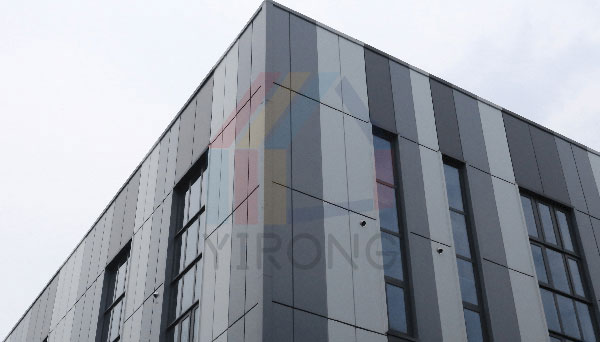

polyurethane insulation panel vertically installed

Differences in installation methods

Ease of construction

During the construction process, horizontally installed polyurethane insulation boards are usually easier to operate because their long sides are placed horizontally, which makes it easier to cut and splice. Vertical installation requires more attention to ensure the verticality of each board, especially in high-rise buildings, where errors may accumulate and affect the overall effect.

Material utilization rate

Horizontal installation can usually make better use of the overall area of ​​the polyurethane insulation board, especially in the insulation project of large-area walls or roofs, reducing material waste. Vertical installation may produce more scraps in some cases, especially in irregular-shaped buildings.

Differences in thermal insulation performance

Thermal bridge effect

Thermal bridge refers to the heat conduction phenomenon in a building caused by different thermal conductivity of materials. In horizontal installation, thermal bridges may occur less frequently because the joints between boards are easier to handle, reducing heat loss. Vertical installation is relatively complicated in joint handling. If handled improperly, it may increase the thermal bridge effect, thereby reducing thermal insulation performance.

Stress conditions

When installed horizontally, the force on the polyurethane insulation panel is mainly along its long side, which can better resist the influence of wind pressure and other external forces. When installed vertically, due to the vertical arrangement of the board, it may be subject to more vertical pressure. In areas with high wind pressure, the stability of vertical installation may be affected.

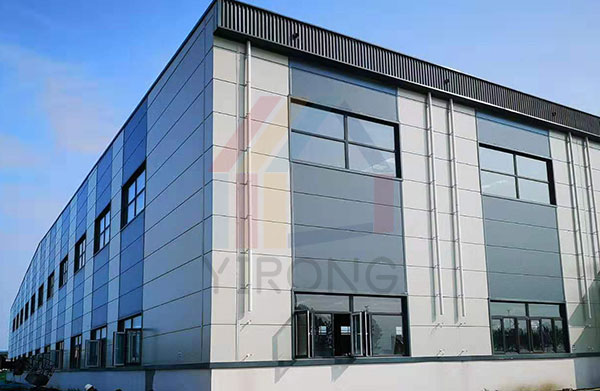

polyurethane insulation board horizontal installation

Different applicable scenarios

Applicable scenarios for horizontal installation

Horizontally installed polyurethane insulation boards are suitable for large-area insulation projects, such as industrial plants, shopping malls, warehouses and other places. Due to its simple construction and good insulation effect, it is widely used in roof and exterior wall insulation.

Applicable scenarios for vertical installation

Vertical installation is more suitable for buildings that need to emphasize facade design, especially in places that require beauty, such as residential and office buildings. In addition, vertical installation may be more suitable in some special structural designs, such as under windows, balcony fences, etc.

Cost and maintenance

Cost analysis

In terms of cost, horizontal installation can generally make more effective use of materials, reduce waste, and thus reduce the overall project cost. However, vertical installation may have relatively high costs due to the possibility of more scraps and complex construction requirements.

Difficulty of maintenance

In terms of maintenance, horizontally installed polyurethane insulation boards are relatively easy to maintain in the later stage because of their simple joint processing. When installing vertically, extra attention may be needed to the sealing of the joints during maintenance to prevent moisture from seeping in and causing a decrease in insulation performance.

Summary

The horizontal and vertical installations of polyurethane insulation boards each have their own characteristics and applicable scenarios. Horizontal installation excels in construction simplicity, material utilization and insulation performance, and is suitable for large-area insulation projects; while vertical installation is more suitable for facade design and special structures, and can show better aesthetic effects. When choosing an installation method, architects and construction parties need to make reasonable decisions based on specific project requirements, construction environment and later maintenance considerations.

In short, no matter which installation method is chosen, the superior performance of polyurethane insulation panel can provide good insulation effects for buildings, help save energy and improve comfort. In future architectural design, the rational use of these two installation methods will provide better guarantees for the energy efficiency and aesthetics of buildings.
